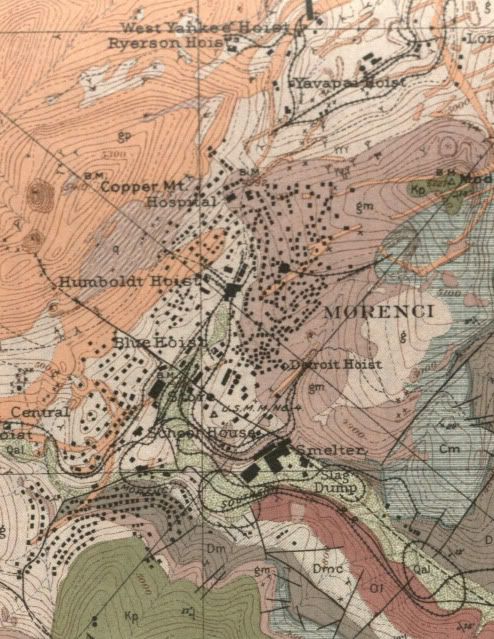

Looking at the massive open pit and tailings that remain, its hard to imagine the extent of the Clifton/Morenci narrow gauge "empire" that the tiny Porters operated on. I'd argue that it was the most intense and elaborate network of narrow gauge lines in the United States. This map of old Morenci (now gone) shows only a portion of the 20" narrow gauge, many lines are either underground or not shown:

____________________
|
|
Posted: Sun Mar 27th, 2011 05:09 pm |
|
12th Post |
elminero67
Registered

Joined: | Sun Dec 27th, 2009 |
Location: | |
Posts: | 973 |
Status: |
Offline
|
|

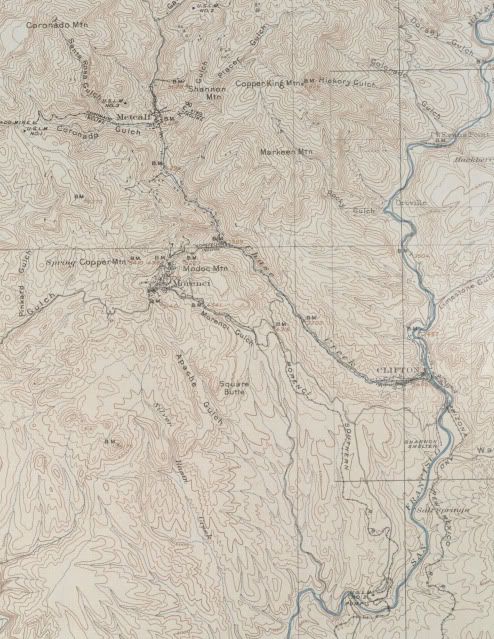

This 1902 topo only also only shows a portion of the lines. Although it doesn't look particularly steep, keep in mind that the contour level is 100'.
____________________
|
|
Posted: Sun Mar 27th, 2011 05:14 pm |
|
13th Post |
elminero67
Registered

Joined: | Sun Dec 27th, 2009 |
Location: | |
Posts: | 973 |
Status: |
Offline
|
|

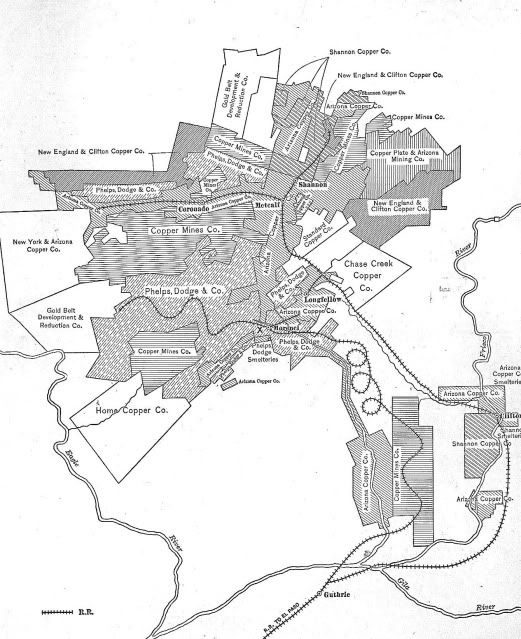

Finally-this last map shows the reason for the multitude of narrow gauge lines: The area was mostly owned by three mining companies, the Arizona Copper Co., the Detroit Copper Co, and the Shannon Arizona Mining Co. Each had their own system of narrow gauge lines that often paralleled eachother, as seen in the photo Vern posted a little eariler in this thread. The railroad with the three loops (there was actually five) is the Morenci Southern. Prior to it's construction almost everything in the town of Morenci arrived via the Coronado Railroad and it's system f inclines and tunnels.
